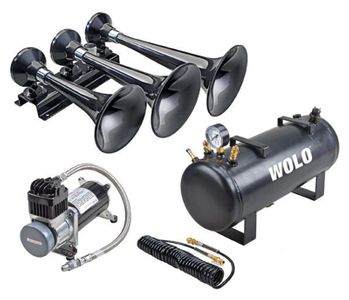

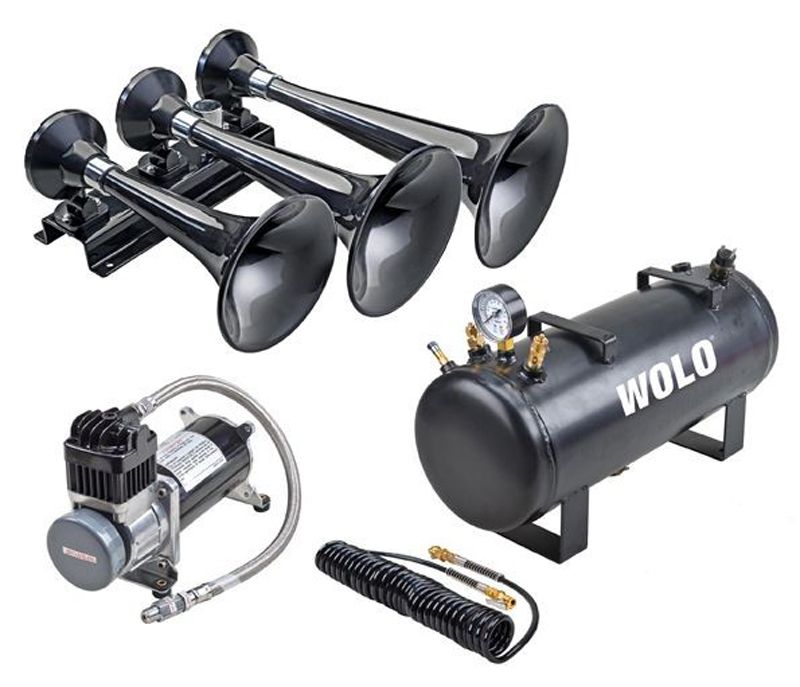

Wolo Express Pro Semi-Gloss Black Train Horn Kit

• Universal flat rack design

• Easy to install

• Horn requires less mounting
  space than other styles of train horns

• Three black trumpets made
  of reinforced ABS plastic

• Trumpets can be separated from
  the mounting base for installation’s
  that have limited space

• Withstands the toughest roads
  and vibration

• Heavy-duty steel-mounting base
  has a powder coat black finish

• Comes with a built-in heavy-duty
  12-volt electric solenoid

• On-board air system produces
  a large volume of high-pressure air

• Includes everything necessary
  for installation

• Heavy-duty 12-volt motor
  balanced to precision

• 4 Heavy rubber bushings mounted
  into the compressor base plate to
  virtually eliminate vibration

• Extended length stainless steel
  high pressure hose connects the
  compressor to the 2½ gallon metal
  air storage tank

• Built-in pressure switch

• Manual water drain

• Pressure gauge

• Pressure relief valve

• Brass fittings

• Kit includes:
  - mounting hardware
  - 10 ft. of flexible high-pressure hose
  - 20 ft. coiled filler hose
     with quality brass fittings

Horn Specifications:

• 128 Decibels

• 308/337/366 Hz – Low Range

• Horn size: 19" (L) x 18" (W) x 9½" (H)

• Horn output: 90/110 psi: 128 db

• Electric solenoid: 12 volts / 300 milliamps

• Hose type: 1/4 in. O.D.

• Air fittings: Brass

• Mounting hardware: Stainless steel

Compressor Specifications:

• Voltage: 12-volts

• Current: 21-amps at peak

• Duty-cycle: 33% @ 100 psi

• CFM: 2.55

• Compressor size:
  10¼" (L)  x 3½" (W) x ½" (H)

Tank Specifications:

• Tank capacity: 2.5 gallon

• Built in pressure switch:
  - On 80
  - Off 110 psi

• Safety pressure relief valve

• Pressure gauge

• Fitting size: All brass

• Petcock water drain

• Tank size: 17¼" (L) x 6½" (W) x 8¼" (H)

• Compressor Mount on Tank size:
  17¼" (L) x 6½" (W) x 15½" (H)
