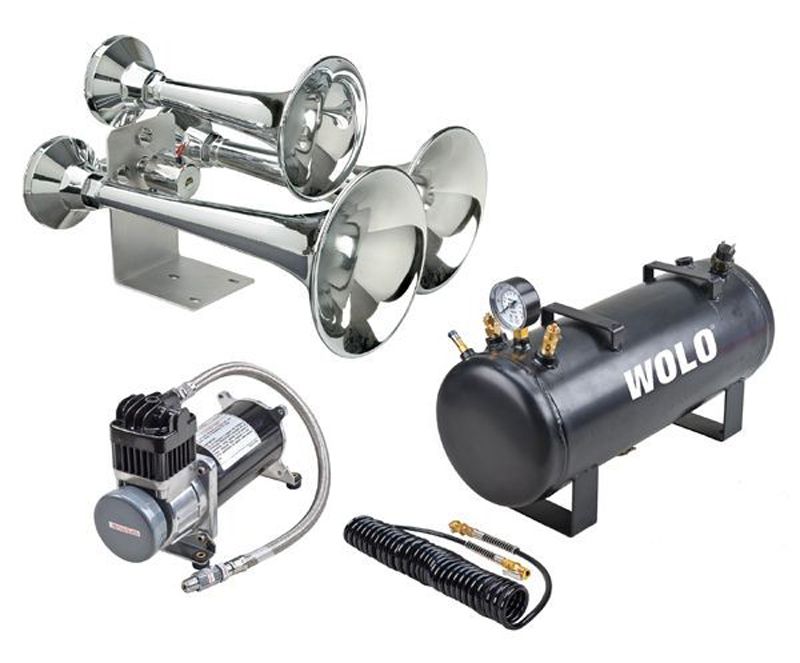

Wolo Cannon Ball Express Pro Train Horn Kit

• An ultimate powerful sounding
  train horn

• Constructed of all metal

• 3 Trumpets are triple
  chrome plated

• Heavy-duty mount base painted
  bright silver to prevent rusting

• Built-in heavy-duty 12-volt
  electric solenoid

• On-board air system produces a
  large volume of high-pressure air

• Includes everything necessary
  for a installation

• Heavy-duty 12-volt motor is
  balanced to precision

• 4 heavy rubber bushings mounted
  into the base virtually eliminate all vibration

• Extended length stainless steel
  high-pressure hose allows the
  compressor to be surface mounted

• Stainless steel hose connects the
  compressor to the 2½ gallon
  metal air storage tank

• Tank has a built-in pressure switch,
  manual water drain, pressure gauge,
  pressure relief valve and brass fittings

• Kit includes
  - mounting hardware
  - 10 ft. of flexible high-pressure hose
  - 20 ft. coiled filler hose with quality brass fittings

• Click on sound icon to hear a sample:
  (Demonstrates sound, not loudness)


Horn Specifications:

• 152 Decibels

• 307/347/440 Hz – Low Range

• Horn size: 16½" (L) x 14¾" (W) x 11" (H)

• Horn output: 90/110 psi: 152 db

• Electric solenoid: 12 volts / 250 milliamps

• Hose type: 1/4 in. O.D.

• Air fittings: Brass

• Mounting hardware: Stainless steel

Compressor Specifications:

• Voltage: 12-volts

• Current: 21-amps at peak

• Duty-cycle: 33% @ 100 psi

• CFM: 2.55

• Compressor size:
  10¼" (L)  x 3½" (W) x ½" (H)

Tank Specifications:

• Tank capacity: 2.5 gallon

• Built in pressure switch:
  - On 80
  - Off 110 psi

• Safety pressure relief valve

• Pressure gauge

• Fitting size: All brass

• Petcock water drain

• Tank size: 17¼" (L) x 6½" (W) x 8¼" (H)

• Compressor Mount on Tank size:
  17¼" (L) x 6½" (W) x 15½" (H)
